if your Screen using other CMS Platform, HTML5 is one of the connection bridges between the Lynx SSP Platform and your DOOH (Digital-Out-of-Home) Inventory. HTML5 is a URL link that can be accessed in a browser page, thus offering flexibility for easy integration.

​
CMS Platform are Support Lynx HTML5

Below is a list of Content Management System (CMS) Platforms known to support Lynx HTML5 content:

Broadsign

Daktronics

Icon Play

LMX

Lumio

Viplex

Taurus

VNNOX

The list above includes CMS platforms that generally support the HTML5 format. However, full compatibility and specific configurations may vary depending on the CMS version being used, the player settings at the location, and the complexity of the Lynx HTML5 itself.
Next Steps: To ensure smooth and optimal playback, it is highly recommended to conduct direct testing with the Lynx Support Team before launching any campaign live.

​
HTML5 Version

Lynx HTML5 has several versions that can be selected based on the CMS (Content Management System) connection you use for DOOH (Digital-Out-of-Home) Inventory. The differences between each version are as follows:

​
Standart Version

The HTML5 Standard version is an HTML connection that can be used on general players with auto-refresh and a stable internet connection. If there are disruptions or the internet connection is unstable, the connection to DOOH (Digital-Out-of-Home) Inventory will be hampered.

​
Light Version

HTML5 Light version is an HTML connection that can be used on general players with auto-refresh and can be used on minimal internet networks. Unlike the Standard Version, if there are disruptions or unstable or minimal internet connection, the connection to DOOH (Digital-Out-of-Home) Inventory will continue to run.

​
Auto Loop

HTML5 Auto loop is an HTML connection that can be used on general players or Smart TVs without auto-refresh, and later HTML5 will run with auto-refresh.

​
How to Connect using HTML5

Ensure you have added DOOH (Digital-Out-of-Home) Inventory on the Lynx SSP Platform (How to Add New DOOH Inventory ↗)
1

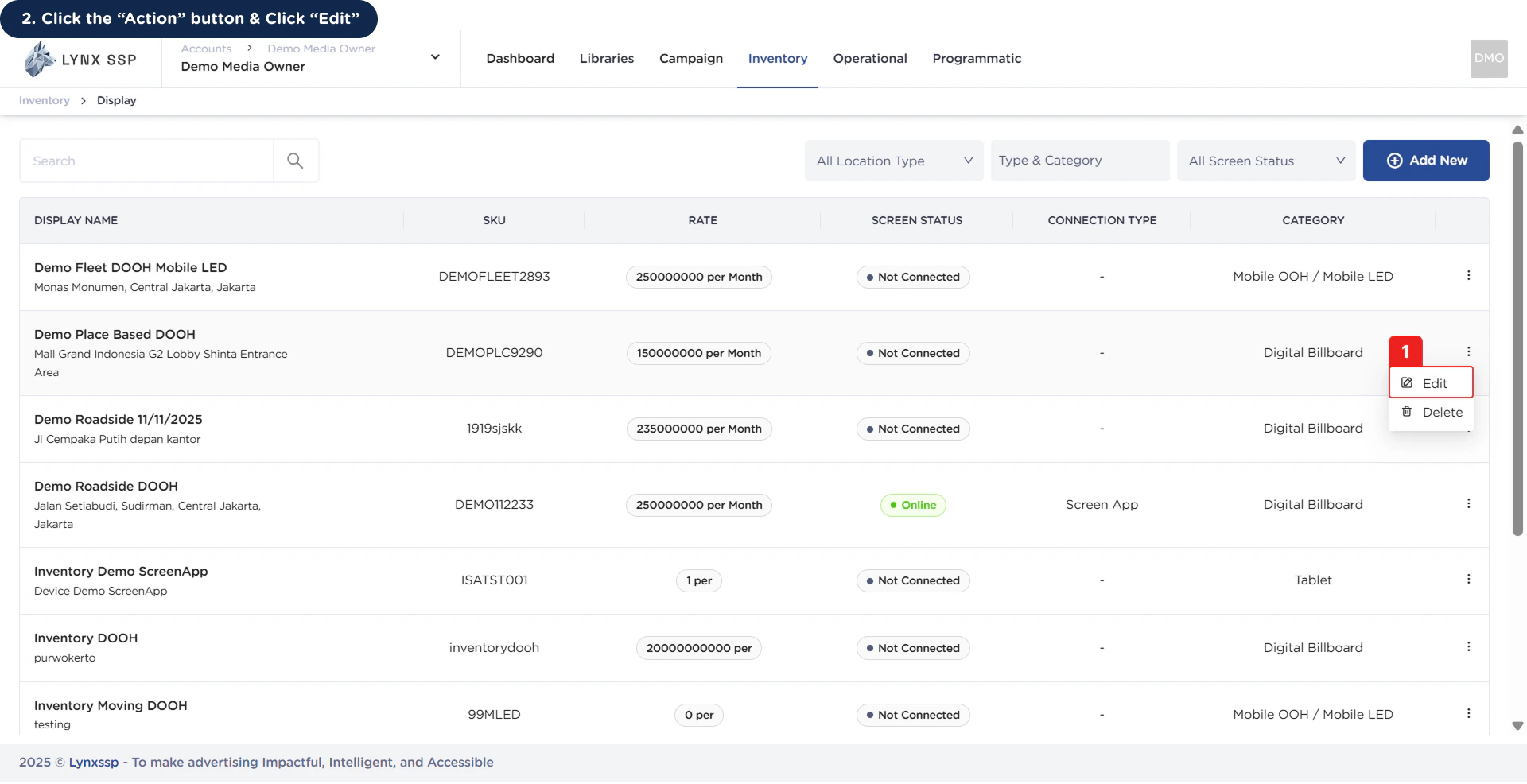

Click the “Action” Button & Click “Edit”

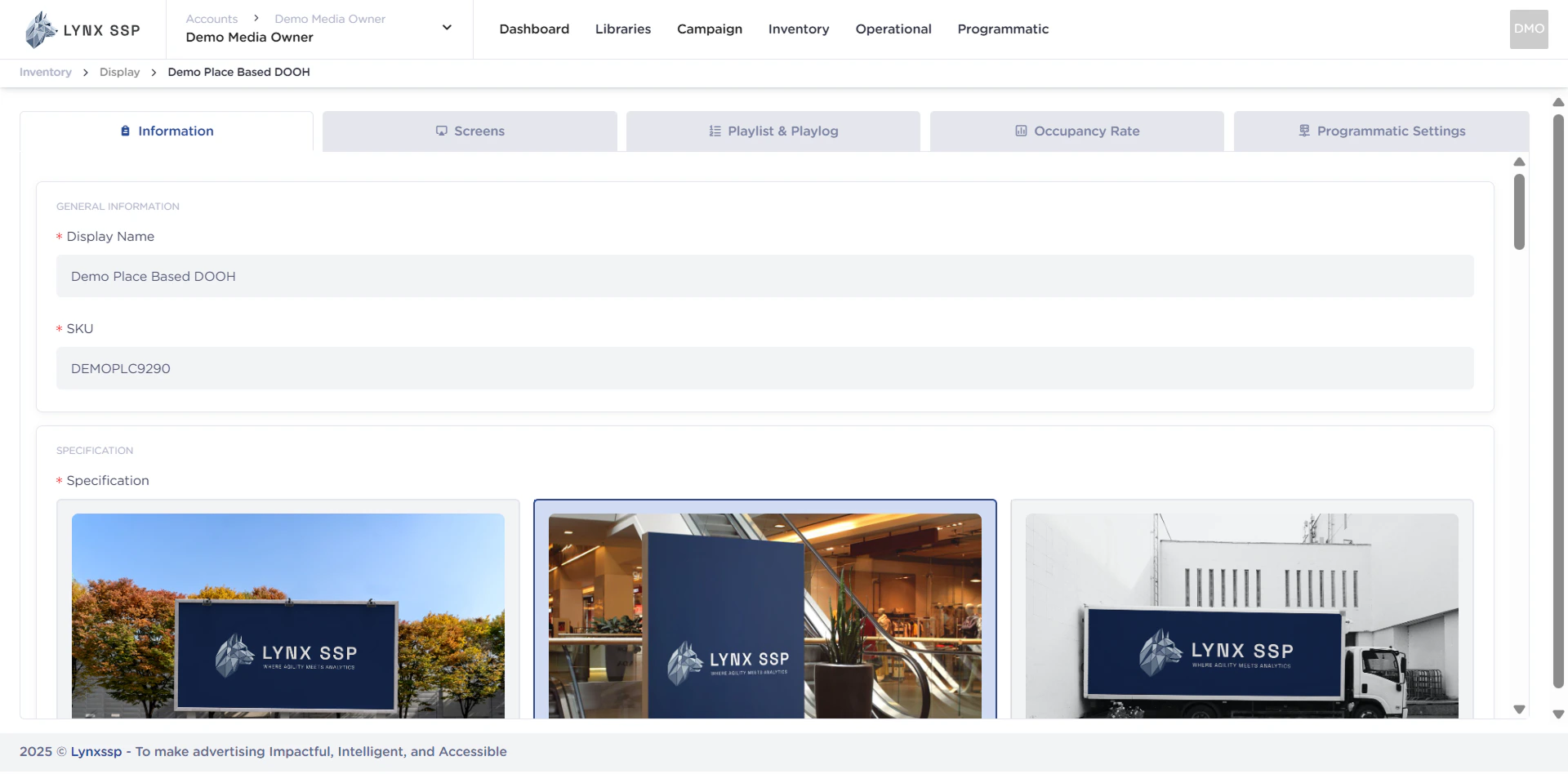

Connecting Inventory with HTML5 1This will display the Inventory Details Page.Connecting Inventory with HTML5 1.2
2

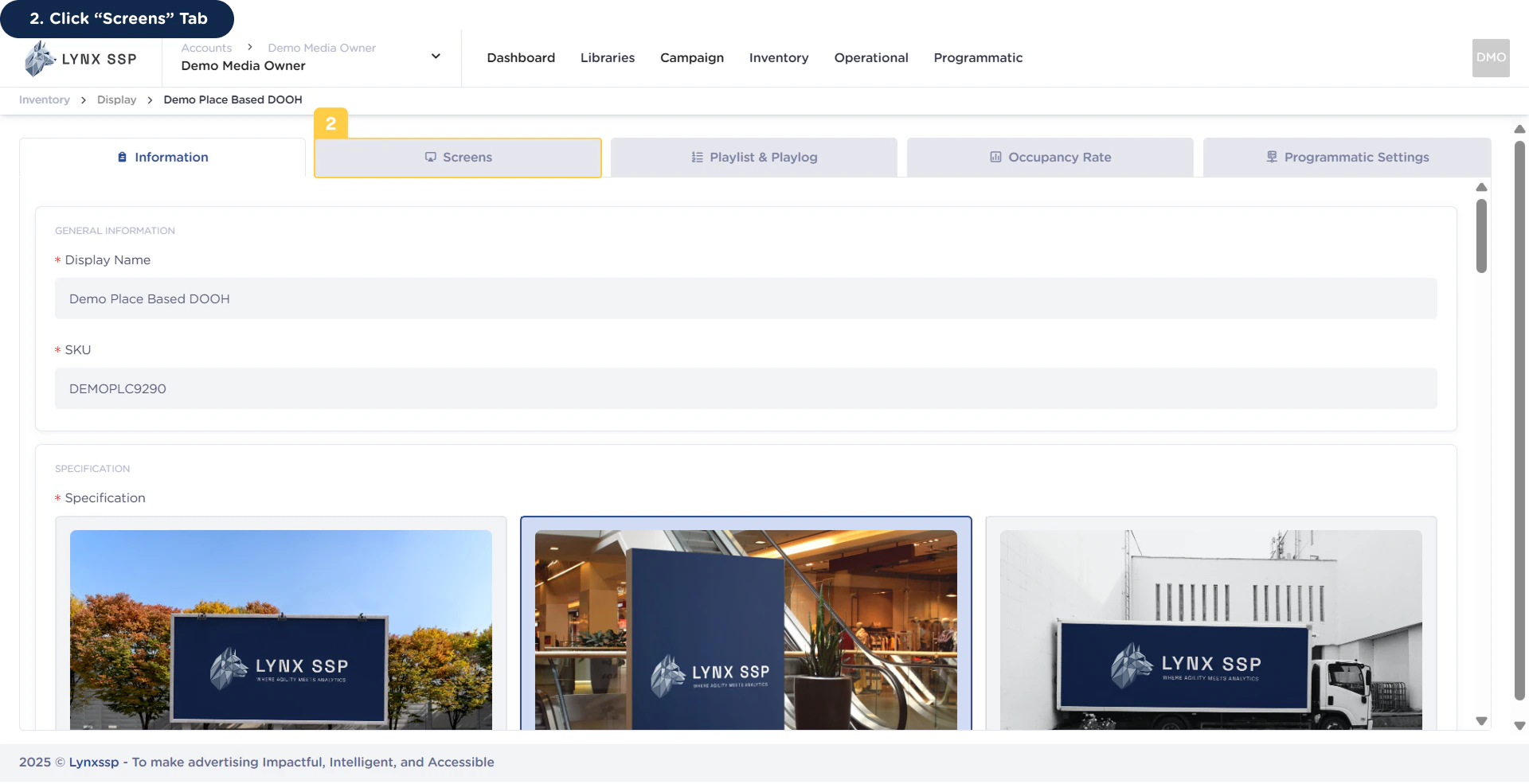

Click “Screens” Tab

Connecting Inventoryw with HTML5 2
3

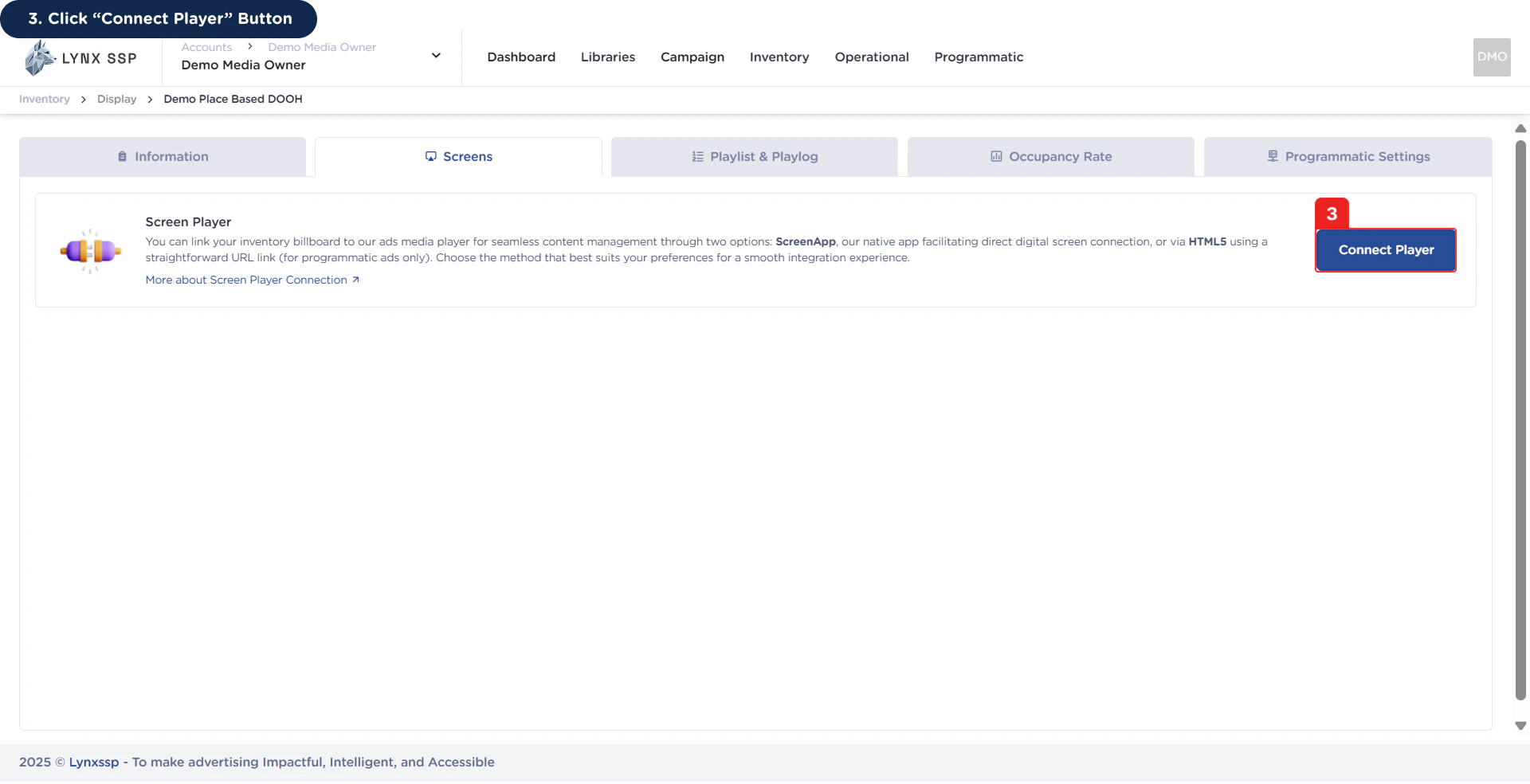

Click “Connect Player” Button

Connecting Inventoryw with HTML5 3Then it will display the connect player modal.Connecting Inventoryw with HTML5 3.2
4

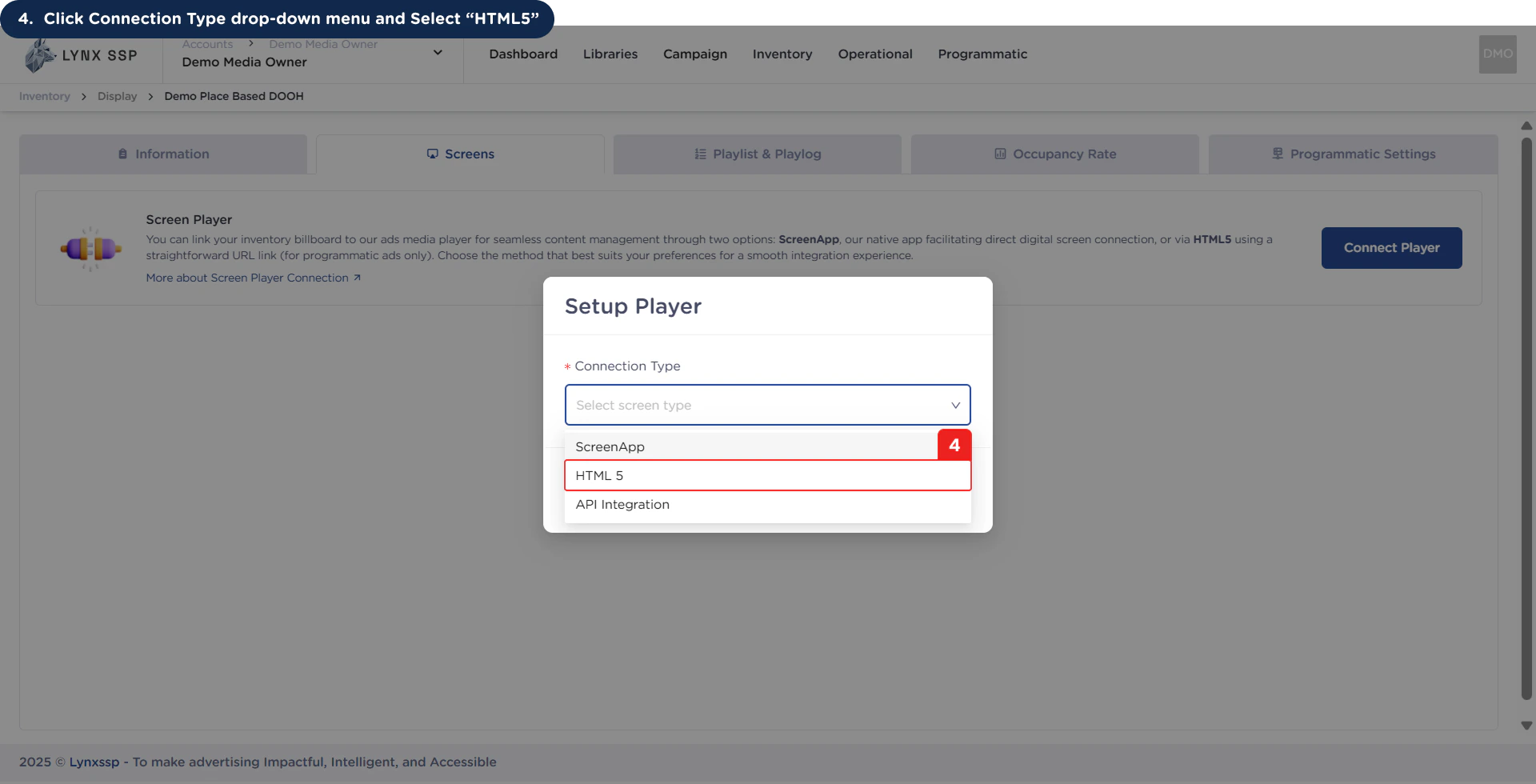

Click Connection Type drop-down menu and Select “HTML5”

Connecting Inventoryw with HTML5 4
5

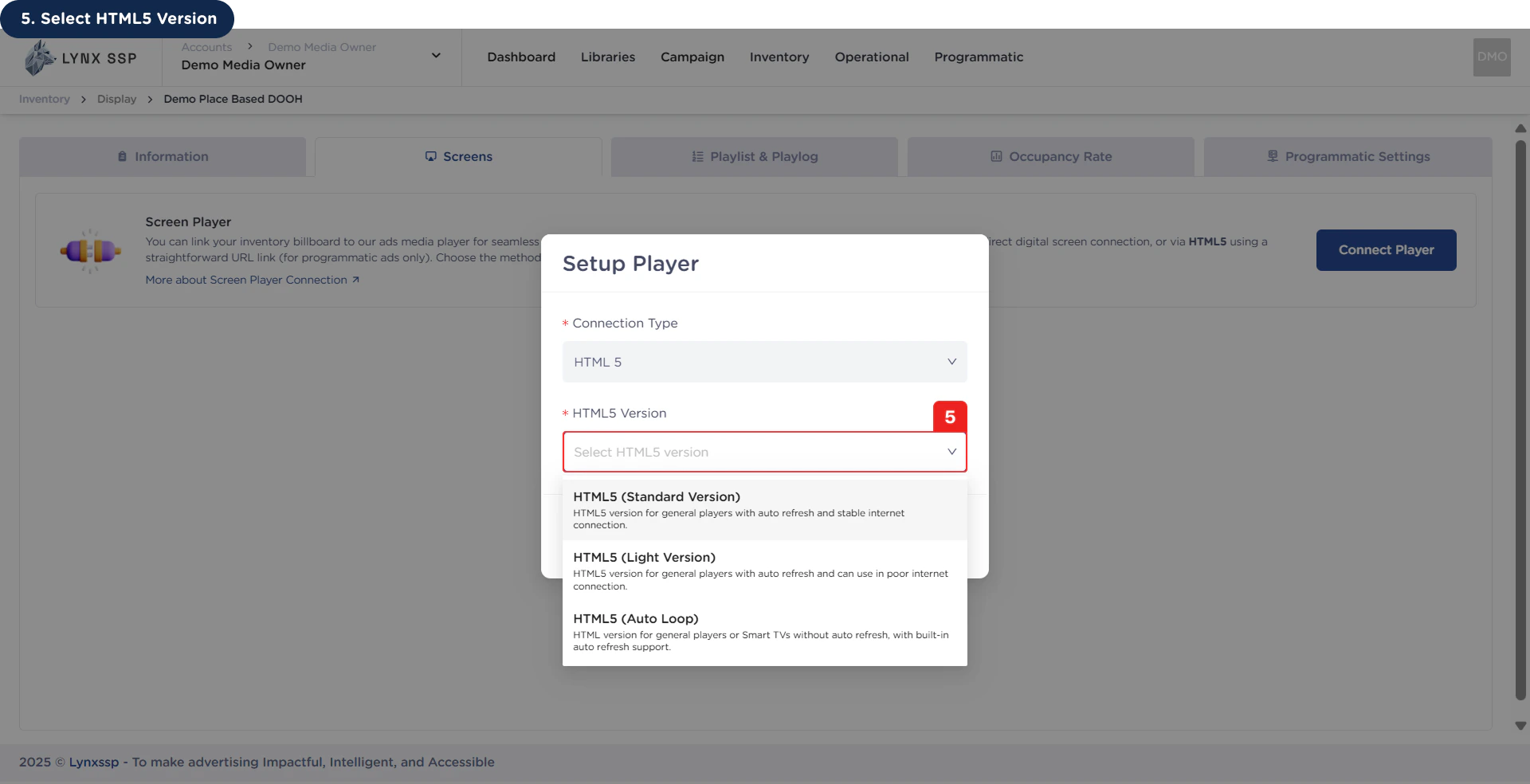

Select HTML5 Version

You can first select the version of HTML5 to use (See HTML5 Version ↗).Connecting Inventoryw with HTML5 5
6

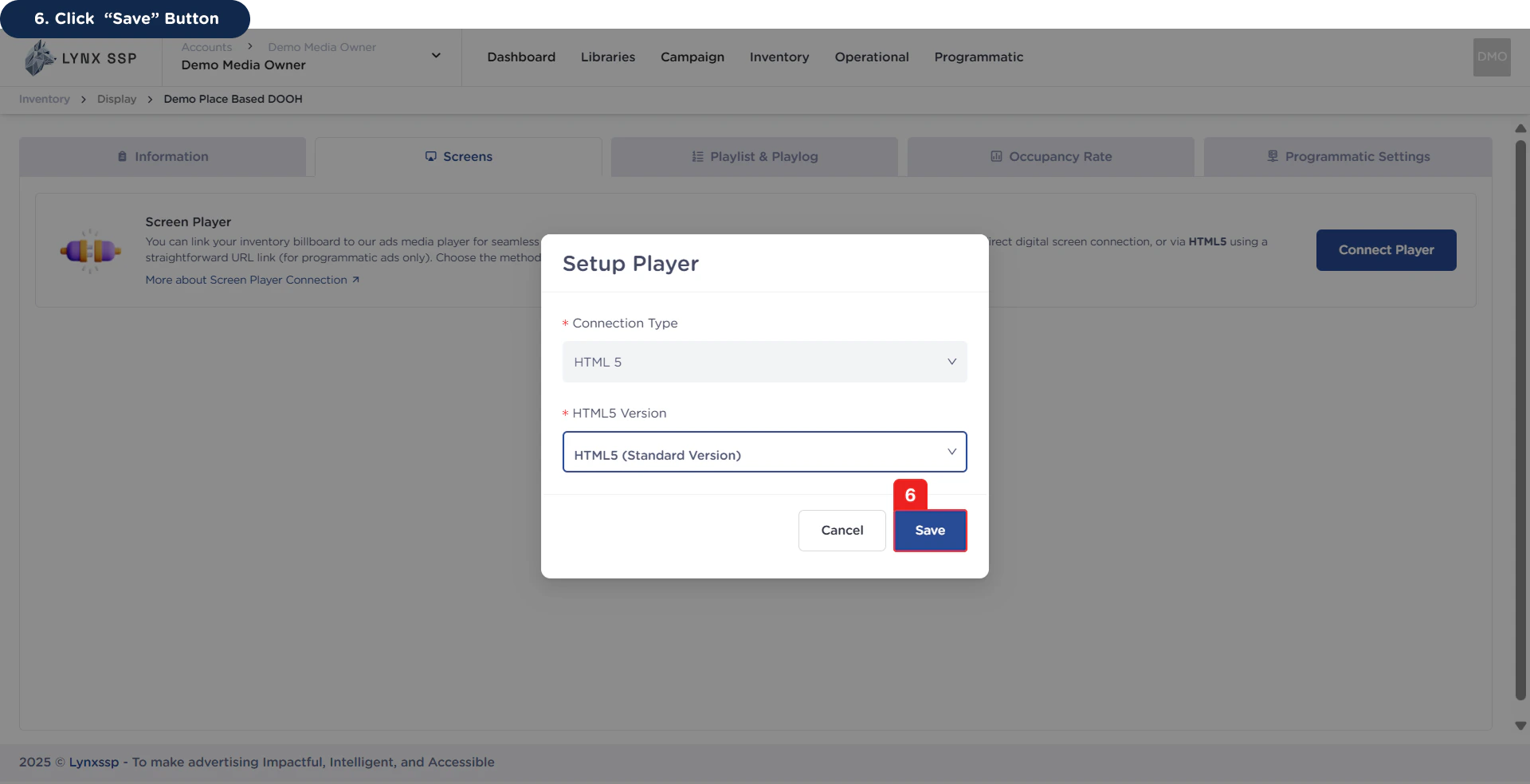

Click “Save” Button

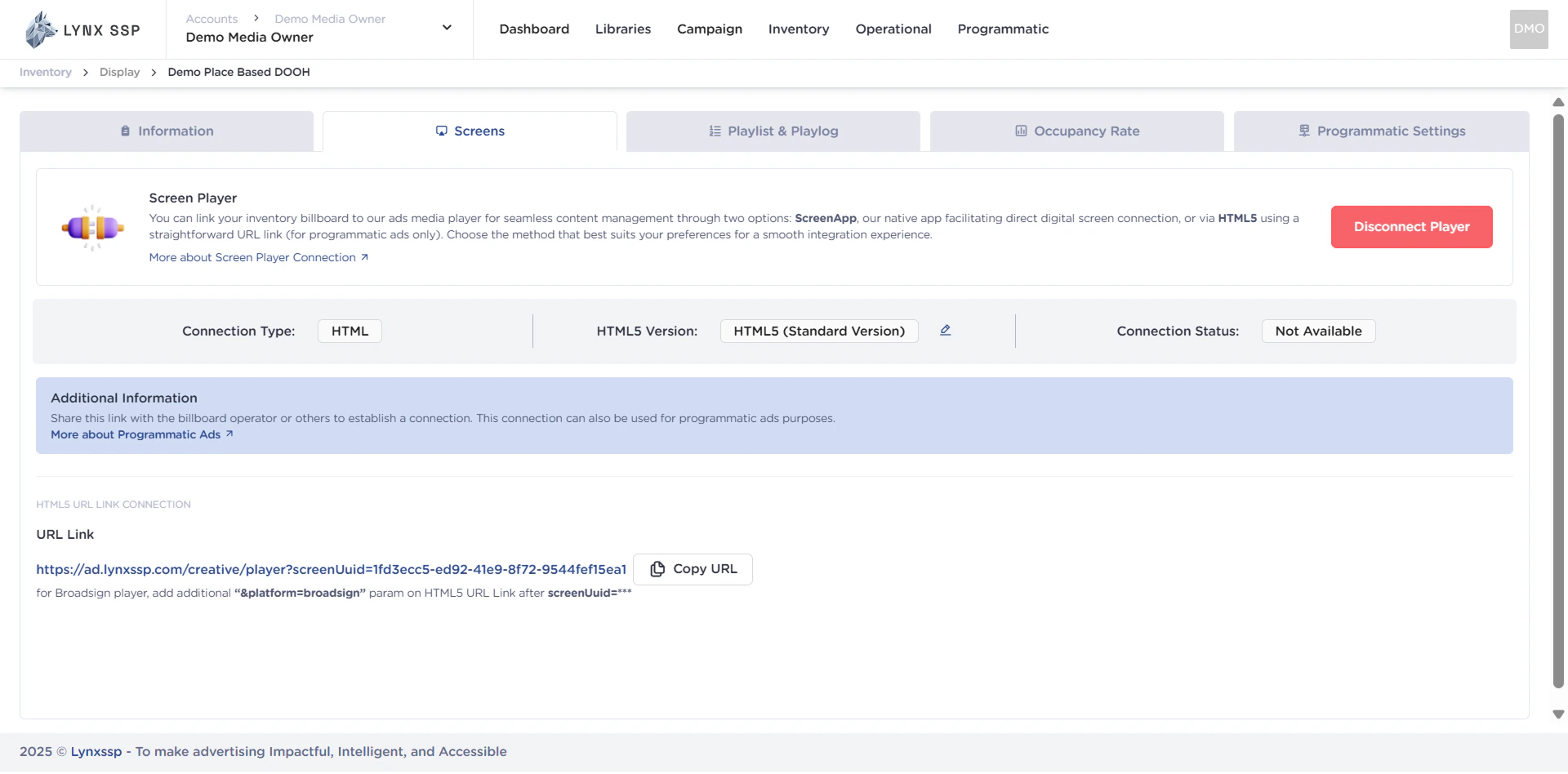

Connecting Inventoryw with HTML5 6Then HTML5 successfully connected.Connecting Inventoryw with HTML5 6.2
You can perform the connection check directly at the location of your DOOH (Digital-Out-of-Home) Inventory point. Ensure that all previous steps have been completed and bind filler content to your DOOH (Digital-Out-of-Home) Inventory (Create a Filler Content ↗). If you encounter any issues while performing the connection check, you can contact the Lynx Support team.
